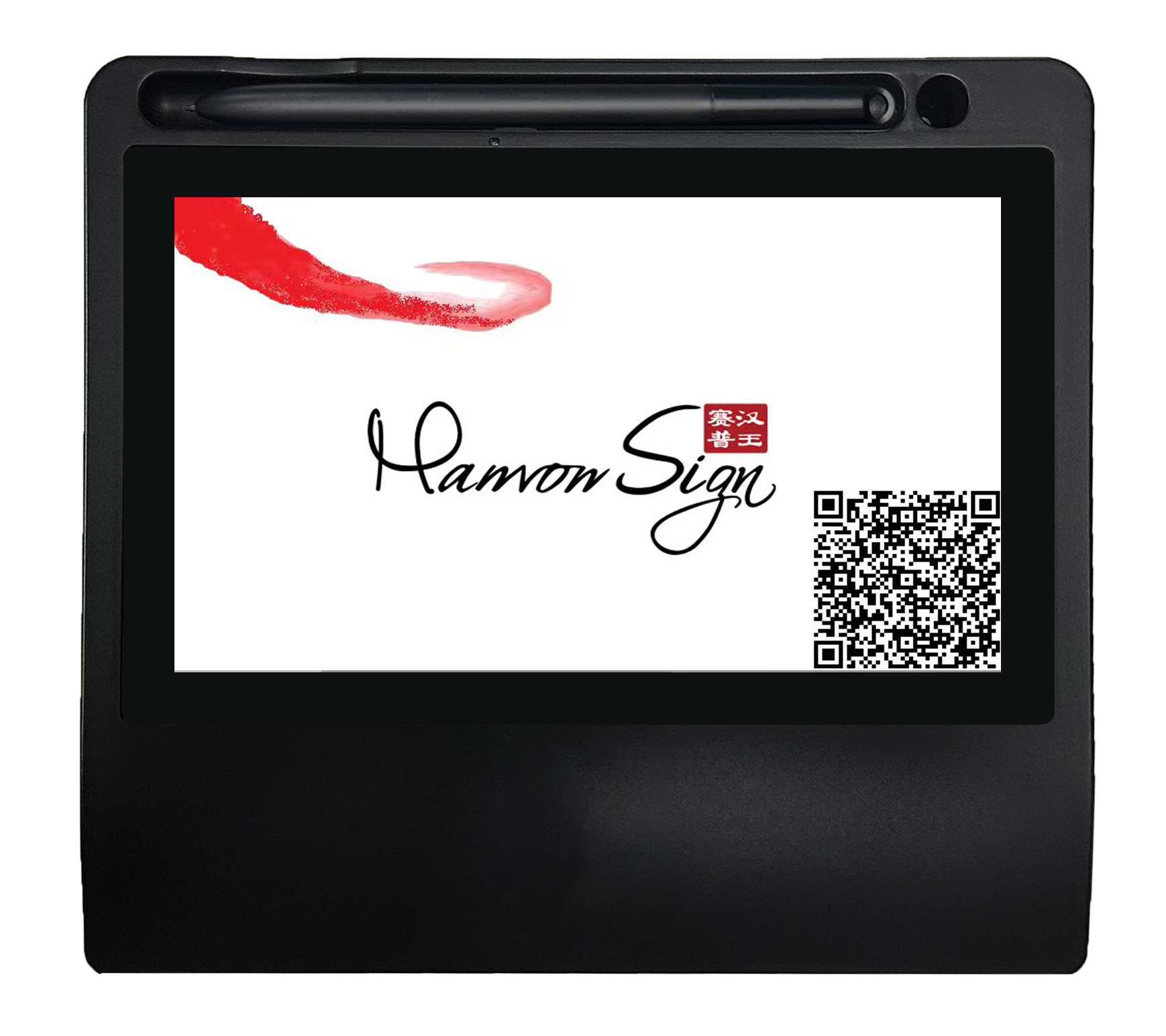

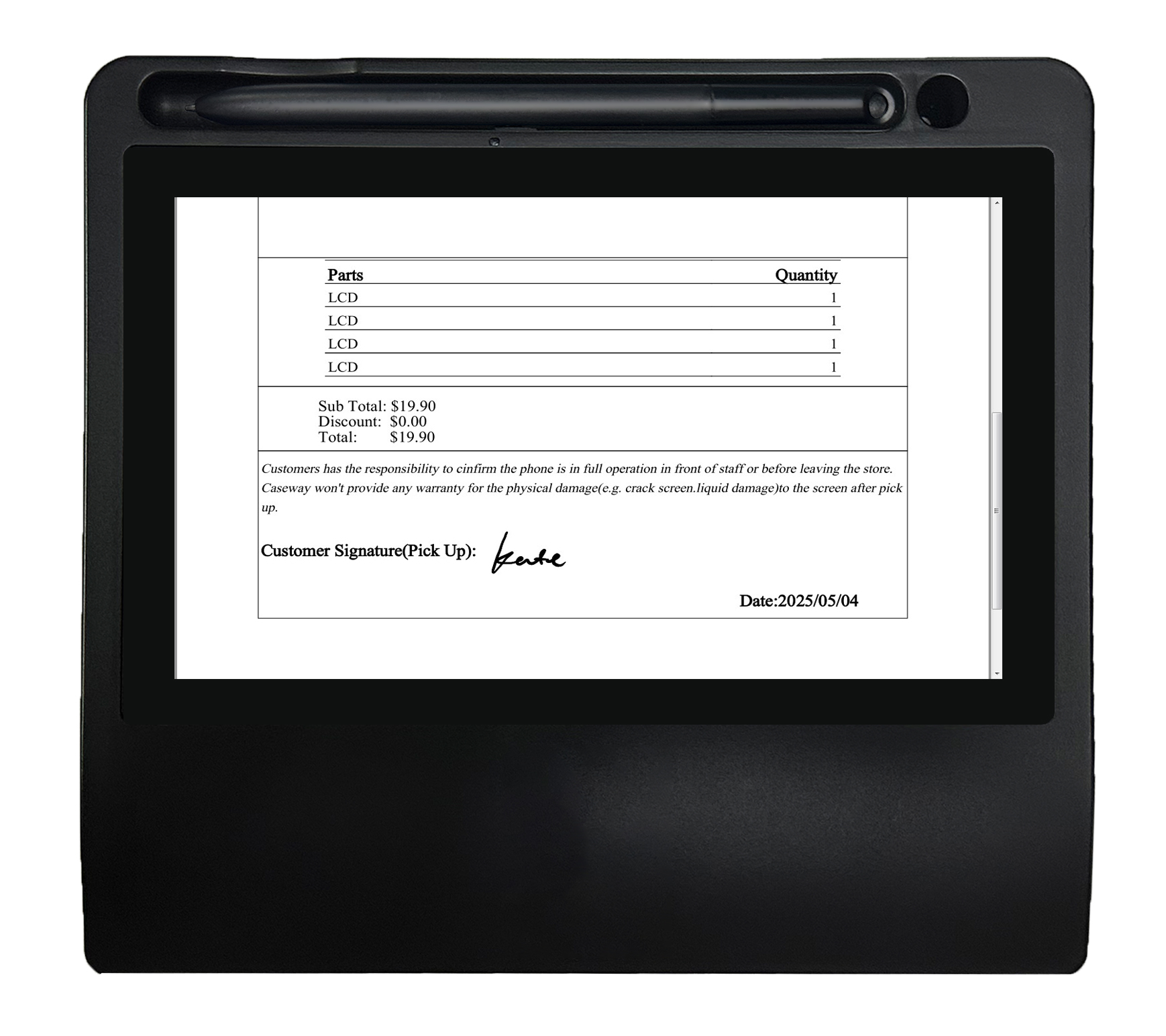

Sign Display ESP700/EN
| Sign Pad ESP700/EN, integrated with LCD and Hanvon patented electromagnetic resonance technology, is designed for the purpose of handwriting in electronic signature capturing application. The EMR component consists of a cordless battery-free stylus and a sensor board. |
- 7.0inch color LCD screen to display high resolution picture and text message.
- Cordless and battery-free pen.
- SDK provides handwriting data like x/y coordiantes, pressure and time etc to capture the signature features.
- Widely applied in banking, telecom, government service etc.
| Model No. | ESP700/EN | |
| Panel Description | Panel Size | 7.0Inch |
| Panel Type | TFT LCD | |
| Display Ratio | 5:3 | |
| Active Area | 153.84(W) * 85.632(H) mm | |
| Pixels | 800 * 480 | |
| Pixel Pitch | 0.1923mm * 0.1784mm | |
| Color | 16.7M | |
| Response Time(TON + TOFF) | 25ms (Typ) | |
| Touch Description | Touch Technology | Electromagnetic Resonance technology |
| Resolution | 2540LPI | |
| Pressure Level | 2048 levels | |
| Report Rate | 200 pps | |
| Accuracy | ±0.5mm(center)，±1mm(edge) | |
| Tilt Angle | ±45° from vertical | |
| Sensor Height | 10 mm | |
| Interface | USB | |
| Stylus pen | Cordless and battery free | |
| Pen Tip | Switchable | |
| Encryption | AES 256/RSA 2048 | |
| Power Supply | Power Supply | USB(5V, 700mA) |
| USB Power | Plug-&-play | |
| Power consumption | 3.5W | |
| Others | Dimension | 190(L) * 170(W) * 17.8(H) mm |
| Signature Software Compatability | Free sdk (lib,dll, ocx websocket etc) for C++,.Net and Java developers in Windows. | |
| Packing List | Sign Display | 1 |
| Pen | 1 | |
| USB Cable | 1 | |
| Lanyard | 1 |
