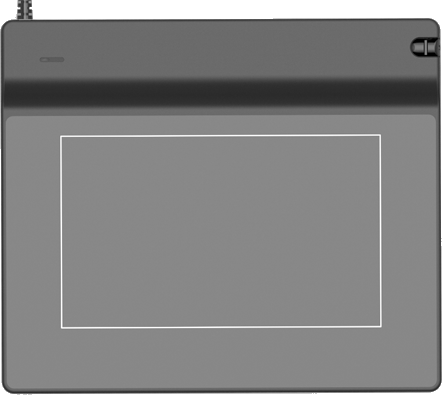

Sign Tablet EST0504
| Hanvon EST0504 is designed for the purpose of E-signature with handwriting. |
| The EST0504 .DLL provides signature handwriting x,y pressure and time information and collect the signature speed and pressure to generate the user’s biometrical information. |
| EST0504 driver program can be embedded in the third-part application. The custom-made development can be made for different applications. |
| EST0504 is widely used in banks, post office, retails, securities, insurance & communications, such as signing on a receipt or a contract with a personalized digital signature. |
| Model No. | EST0504 / Hanvon | |
| Tablet | Dimensions(W×H×D) | 180 × 153 × 4.9mm |
| Active Area | 123.4 × 91.6 mm | |
Technology |
Electro-magnetic resonance technology | |
| Resolution Ratio | 5080LPIWin | |
| Coordinate Accuracy | ±0.1 mm | |
| Report Rate(max) | 133 pps | |
| Accuracy Assurance Height | 7 mm or more | |
| Maximum Pen Tilt Range | ±60° from vertical | |
| Color | Black | |
| PressKey | NO | |
| Compatibility | USB 3.0 | |
| Cable | USB Cable(1.9m) | |
| Power Management | USB BUS power(5V, 100mA) | |
| Operating Condition | 0 to 40 degrees C, Humidity:20 to 80%RH | |
| Storage Condition | -25 to 65°C，Humidity:10% to 93%(40°C) | |
| Certificate & Comformance | FCC CE | |
| OS supported | XP, XPE, Vista or Win7 / 8 Server2003及Server 2008 R2 | |
| Pen | Pressure Sensitivity | 2048 levels |
| Dimensions | 6.4(Φ)×112.9 (length)mm | |
| Color | Black | |
| Packing contents | Device | 1 |
| pen | 1 | |
| cable | 1 | |
| tether | 1 |
